Safety Speed Cut Vertical Panel Saw with Wheels, Folding Stand, Dust Outlet & Saw Blade 6480-20C
Details

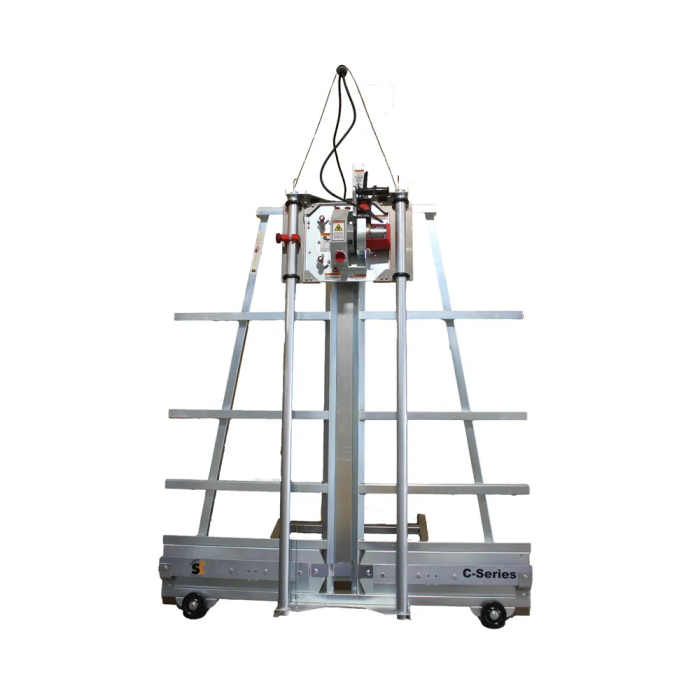

Safety Speed Manufacturing 6480-20C Vertical Panel Saw
The 6480-20C is a compact panel saw with a 5' frame, and a 50" maximum crosscut with a 96" rip cut capacity. Featuring a cut accuracy of 1/32", and a 1.75" cut depth, the 6480-20C is eerily similar to our C4 panel saw while having optional accessories built into the price.
The 6480-20C features over $500 in savings compared to buying the C4 Panel Saw with each accessory. Accessories included as standard equipment on the 6480-20C include:
- A portable folding stand and wheels allowing for moving the panel saw around your shop as your day-to-day operations change,
- General-purpose saw blade.
- a dust bonnet allowing you to set your machine up for collecting dust
The 6480-20C includes a 3.25 horsepower Milwaukee Tool motor. Optional accessories include a dust collection kit and vacuum for collecting as much dust as possible.
Wheels and a folding stand provide portability for your compact panel saw and allow you to move it around your shop as you see fit.
Features:
- 3-1/4 Hp, 15 amp industrial, Milwaukee Tool motor.
- Folding Stand
- Wheels
- Zinc plated 1-3/4" steel guide tubes.
- 4 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard.
- Injection-molded plastic material rollers.
- Spring loaded counter balance system.
- Integrated dust collection bonnet.
- Extended warranty.
- TUV certified to UL/CSA standards
Specifications:
- Weight — 189 lbs
- Dimensions — 60 x 11 x 70in
- Max. Crosscut — 50"/1270mm
- Max. Rip Cut — 96"/2450mm
- Cut Depth — 1-3/4"/45mm
- Cut Accuracy — 1/32"/.8mm
- Frame Length — 60"/ 525mm
- Saw Blade Diameter — 8"/210mm
- Saw Blade Bore Size — 5/8"
- Daily Usage — 1-3 Hours
- Rollers — 8
- Motor volt and amperage — 15 amp, 120V, 7.5 amps, 220V
- Motor Manufacturer — Milwaukee Tool
- Machine Footprint — 15sqft
- Machine Length — 60"/1525mm
- Machine Height — 75"/1900mm
- Machine Width with stand attached — 36"/915mm
- Circular Saw Motor Revolutions Per Minute (RPM) — 5,800 RPM
- Country of Origin — USA
Specifications
| Safety Speed Cut Vertical Panel Saw with Wheels, Folding Stand, Dust Outlet & Saw Blade 6480-20C | |
| APPLICATION | Wood Working |
| Brand | Safety Speed Cut |
| HORSEPOWER | 3.25 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Panel Saws |
| TOOL TYPE | Saws |
| GTIN | 850009663993 |
